Long Distance Molten Aluminum Transfer Ladle Recycled Aluminum Equipment

Brand Name : HYDEB

Model Number : HBQ-256

Certification : CE ISO9001

Place of Origin : Jinan, China

MOQ : 1 set

Price : 16000USD/set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 60 sets per year

Delivery Time : 45 workdays

Packaging Details : Standard exporting package

Power (kW) : Power (kW):

Product Name : Molten Aluminum Transfer Ladle

Molten Aluminum Transfer Ladle : more than 90 KM

Capacity : 500-5000KG or customized

Natural temperature drop : less than 10 ℃/h

Weight (T) : T

Contact Now

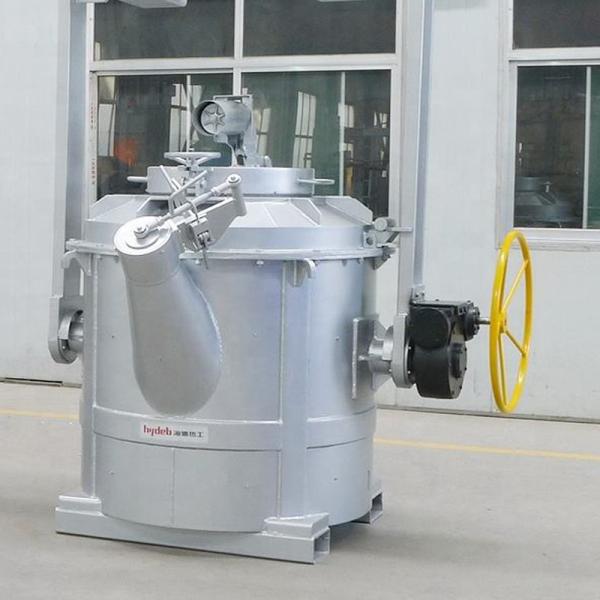

Long-distance molten aluminum transfer ladle Recycled Aluminum Equipment

Long-distance molten aluminum transfer ladle Recycled Aluminum

Equipment Introduction
• The molten aluminum transfer ladle is mostly used for long-distance safe transportation of molten aluminum to an aluminum
casting factory.
Equipment Features
• No molten aluminum leakage, high transportation safety. The ladle body is firm; the ladle lip and cover are reliably sealed,
with molten aluminum not to overflow even if the ladle body topples over.
• Excellent thermal insulation performance, low natural temperature drop. The thermal insulation layer, made of a heat-insulating
Nano-fibrous material, has excellent thermal insulation performance; made of a special material and specially structured, the
working layer (in contact with the molten aluminum) prevents the molten aluminum from leaking. The ladle has low surface
temperature, suitable for long-distance transportation.
• Low weight, transportation cost-saving. The lightweight heat-insulating Nano-material ensures a small ladle body size and a low
ladle body weight.
• Excellent non-stickiness with molten aluminum, easy to clean. The inner layer of the lining, made of a dedicated refractory
casting material, has good aluminum tolerance and high resistance to corrosion by molten aluminum.
• High resistance to thermal and cold shocks, high strength. The dedicated high-strength ladle lining can resist frequent thermal
shocks without falling off.
• A long service life. Professionally designed and manufactured, ensuring that the lining life is more than 24 months in
continuous use.
• The lade cover actuator (optional) helps to open the ladle cover with ease.
Items Parameters Remarks
Modle HBQ-230
Heating Type Small; Medium; Big
Max. Burning Calorific Value 20x104 Kcal/h
Max Heating Temperature 1100℃
Working Heating Temperature 0-850℃
Heating Rate 0-50 ℃/min Adjustable
Time to Reach Temperature 0-60 min
Heating Temperature Uniformity ≤50 ℃
Lifting Power Air Cylinder Driver
Lifting Stroke 0-400mm
Gas Gas Type Natural Gas
Gas Pressure 5000 ±5% Pa
Gas Flow ≤24 m³/h
Power Voltage 380 V, 3P
Frequency 50HZ
Rated Power 3 KW
Compressed Air Pressure 0.5-0.7 MPa
Flow ≤50 M3/H
